Create a JSON-String (create an array)

Create a JSON-String

Summary

The format “Create a JSON string” will create a JSON string from the input value with custom key – value configuration. This JSON then can be sent to a target system.

Example

Insert the attribute and select the function “SC::Complex – create a JSON-String” in the dropdown menu.

Click on the marked button for the extended settings, a new window opens.

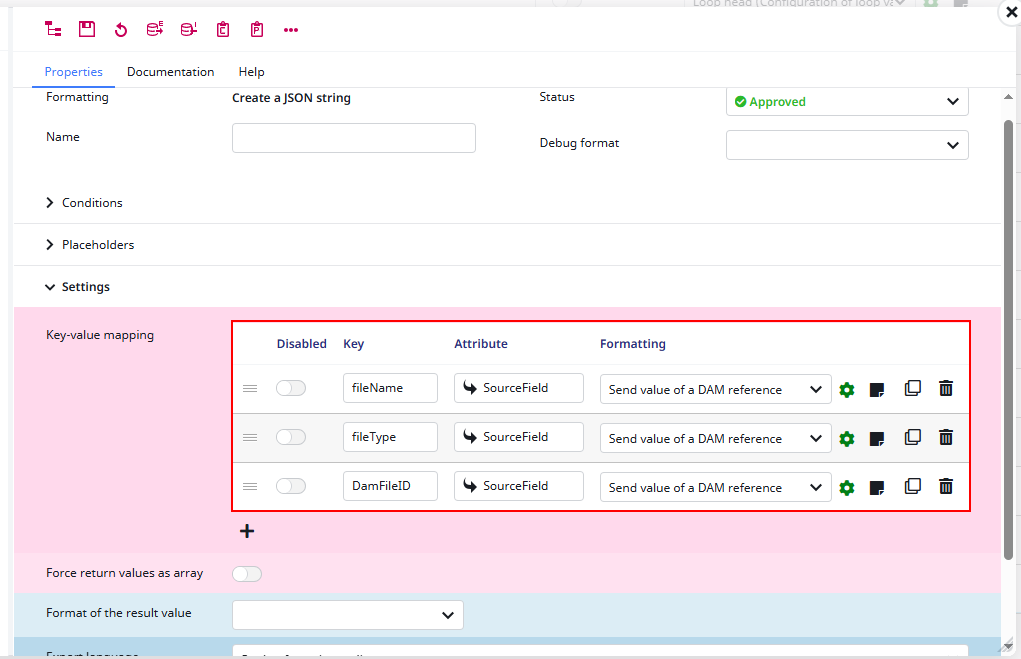

Here you set your value that should be transferred to your system.

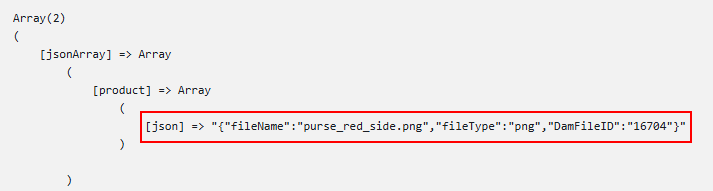

Results example

Create an Array

Summary

The “Create an array” format is used to create and transfer arrays of individual keys/values to the desired target system.

Example

Insert the attribute and select the function “create an array” in the dropdown menu.

Click on the advanced settings button to open a new window.
Here, you can specify the keys/values that you want to convert to an array and transfer to your system. This works similar to the “Create a JSON string” format.

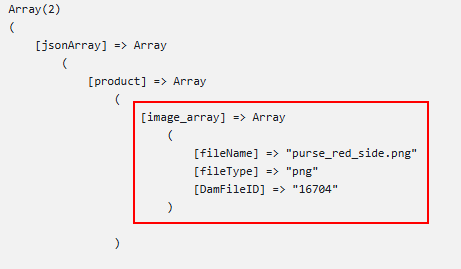

Results example

Create JSON from create an array

When you are finished building your array, you are able to execute some formatting on the array. For example, creating an JSON string from said array.

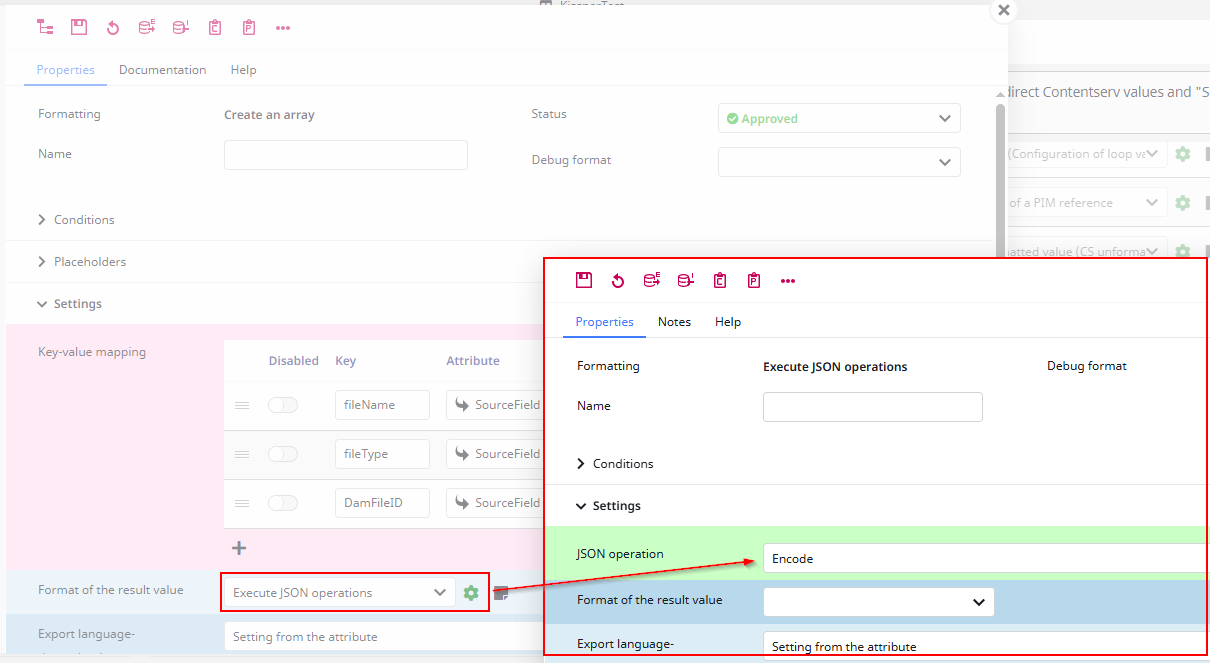

Select “Execute JSON operation” on “Format of the result value”.
In this format plugin select ‘Encode’ to perform a JSON encoding operation on your array to obtain a JSON string.

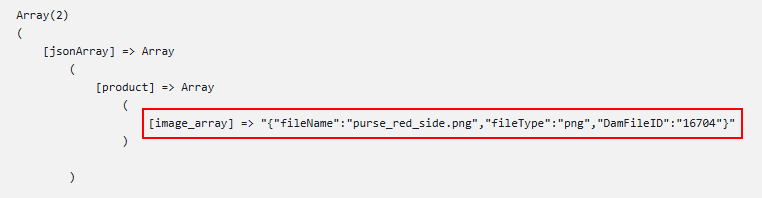

Your result should look like this.
