Response Handler Field Plugin

The Response Handler only works in the “DynamicJSON-Connector” with the “SC::JSON – Default HTTP Transmitter”

Response Handler Configuration

The response handler is configured in the “Node Mappings”

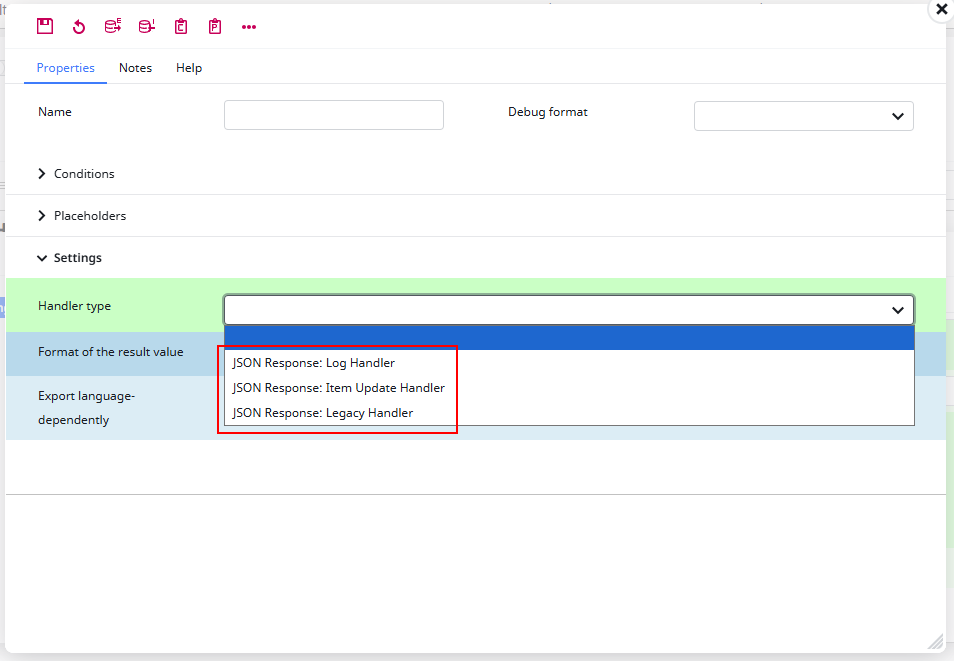

There are three response handlers available. All of them can only process responses in JSON-Format.

All handlers except the legacy handler have similar configuration fields like the “HTTP Code” and the “Path to result in JSON”.

In the “HTTP Code”-Field you can either configure the behavior for every code or use regex to use the same behavior for e.g. all success codes (200-299)

The following table gives some examples:


The “Path to result in JSON” points to a specific value in the response. To navigate through the JSON use a pipe. (|)
With the 1.21. we released three different response handlers:

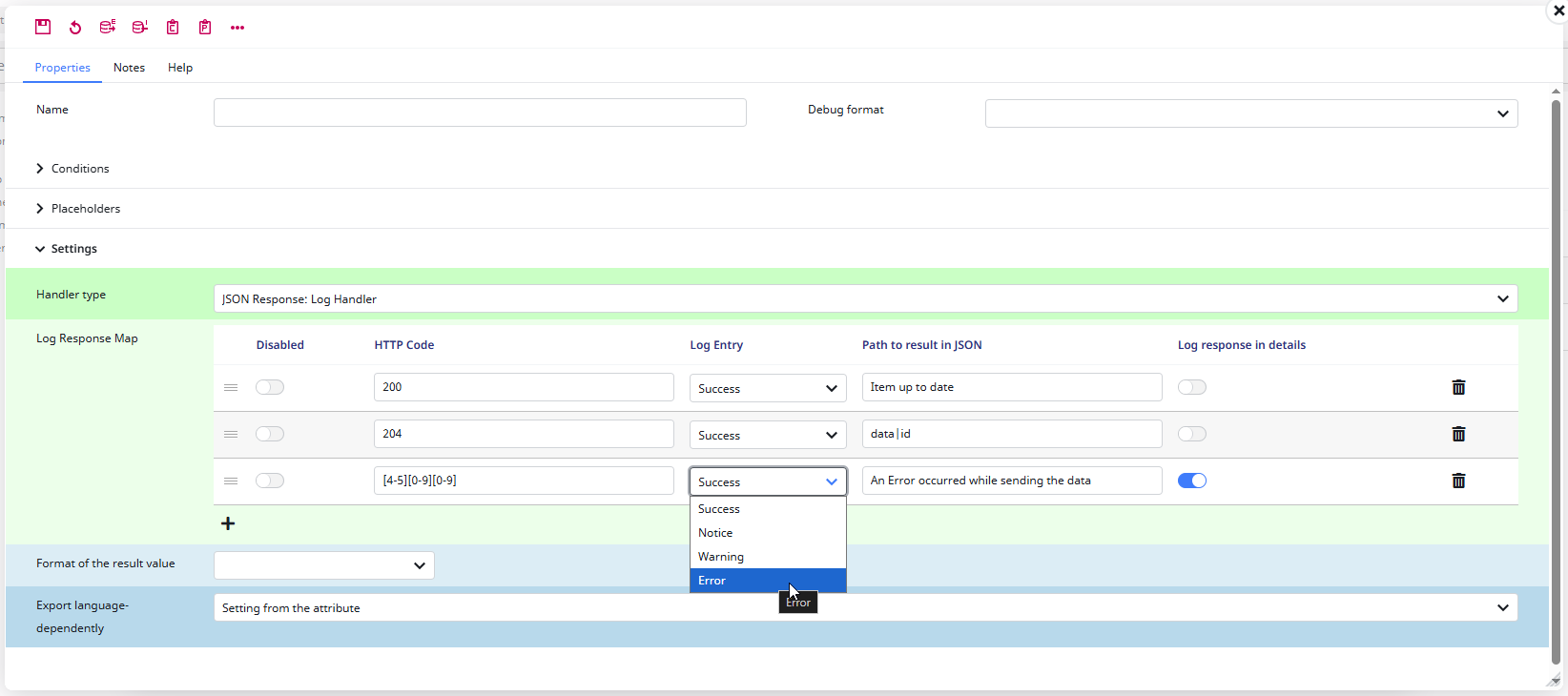

JSON Response: Log Handler

Example Configuration:


When using this type, “Path to result JSON” can also be a custom log message like “Item up to date”. There is also the option to log the response in the log details. It is also possible to set the log level.


JSON Response: Item Update Handler

The update handler also includes the log handler
Example configuration:


“Path to result in JSON” needs to point directly to a value in the response. Otherwise no value will be saved.
If the response code matches the configuration, the value will be saved in the current item.


JSON Response: Legacy Handler

This is the old handler that checks the following format:

{"code":"","message":""}

If the expected response has a different format, please use the Log Handler or Item Update Handler
